Pruning & Trimming Machines
Efficient Pruning Solutions for Modern Agriculture

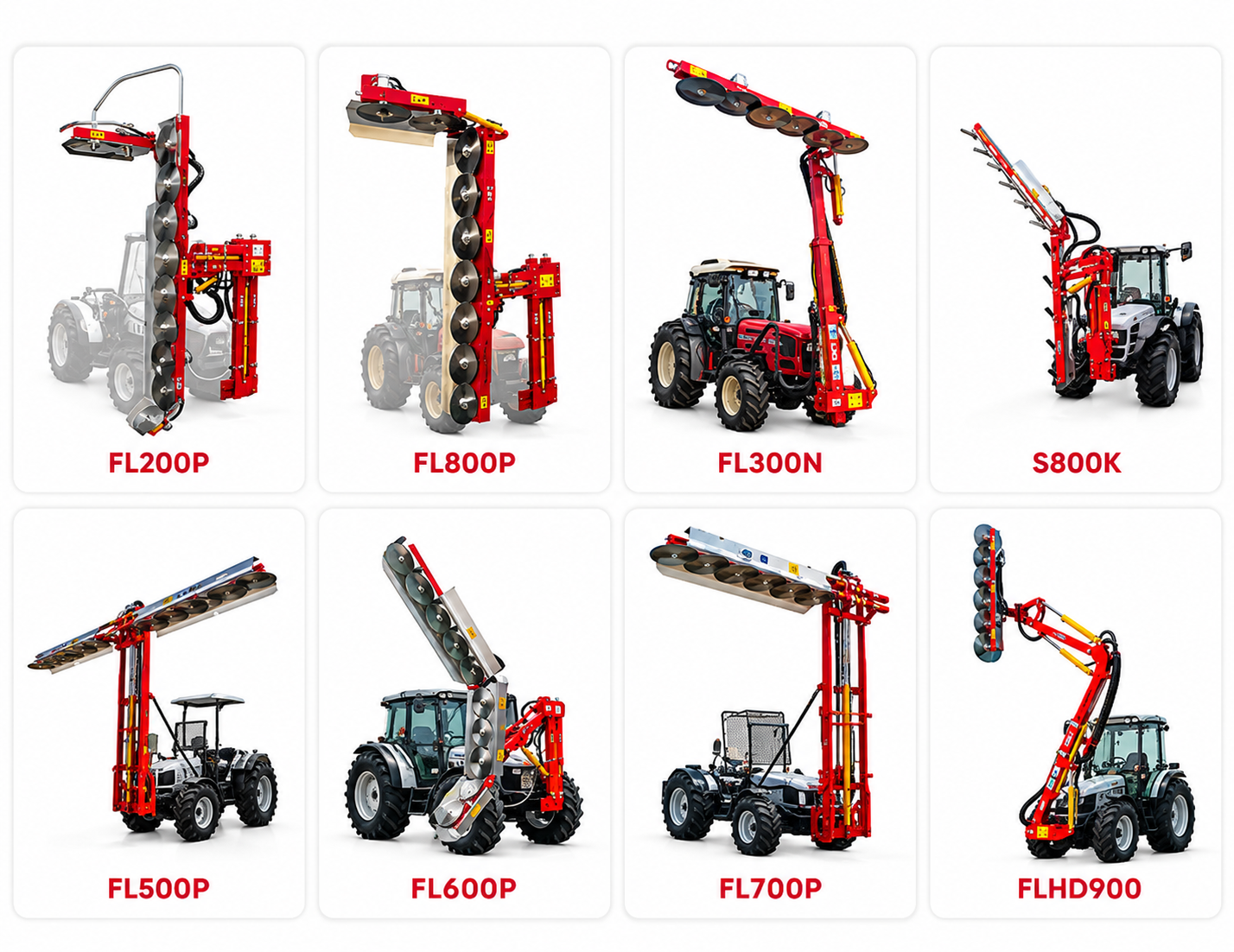

SAM Agri supplies specialised agricultural pruning and trimming machines designed to make orchard and tree-crop management more efficient. The BMV range provides solutions for both green and dry pruning, helping farmers manage tree growth and maintain productive orchards.
The range includes machines suited to fruit orchards, citrus, olive groves, hazel trees and other agricultural applications, with different cutting configurations available depending on the pruning requirements.

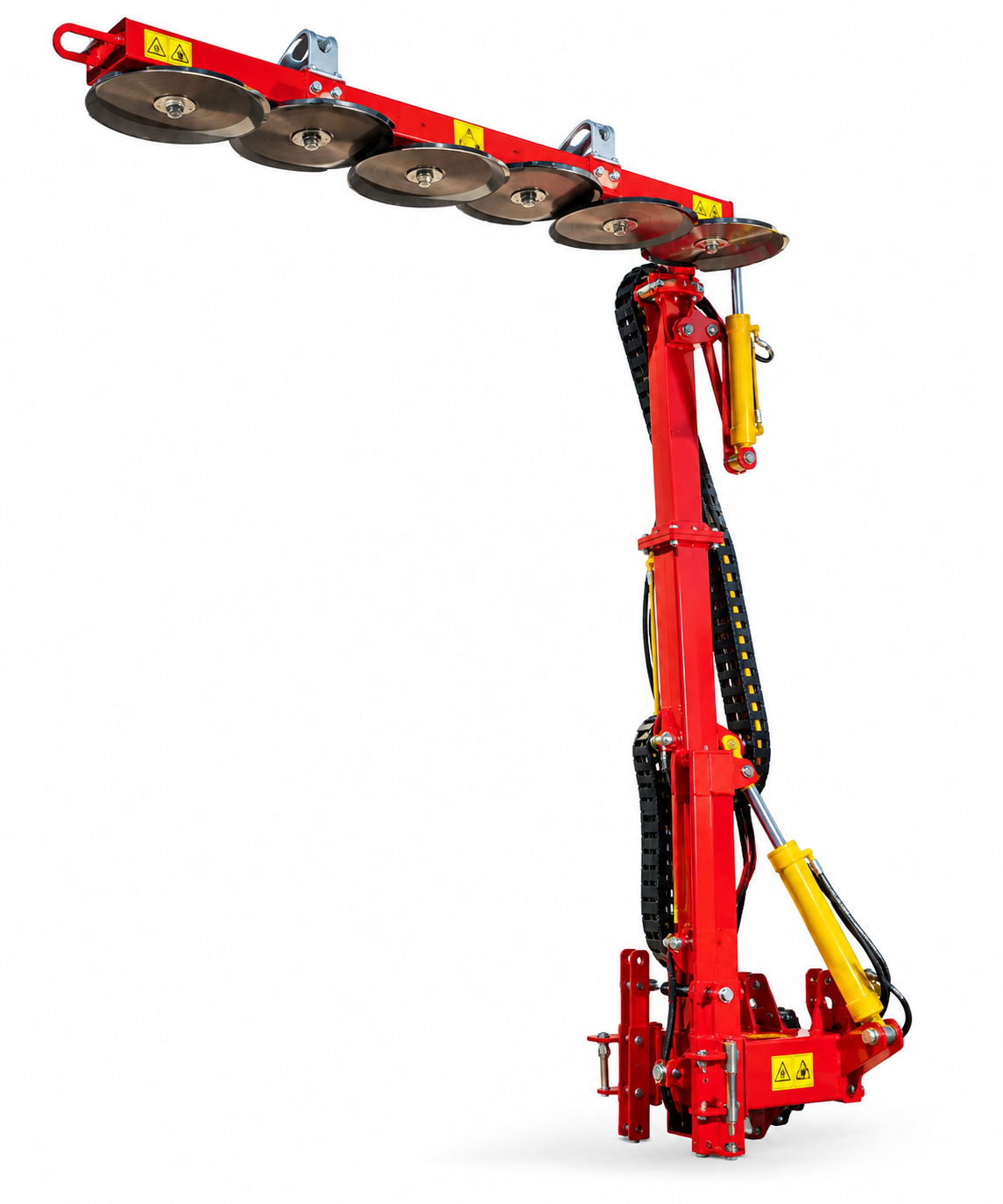

BMV – FL 300N
The BMV FL 300N is designed for green and dry pruning of different types of trees.
For dry pruning, the machine uses 350 mm rotating discs capable of cutting branches up to approximately 6–7 cm in diameter. For green pruning, knives can be fitted to provide quick and efficient cutting of green wood.
The cutting group can operate in both vertical and horizontal positions, while the double sliding system on the central column allows a horizontal cutting height of up to 4.30 m.
The machine’s hydraulic movements allow it to adapt to different orchard rows, while the belt transmission requires no adjustment.
BMV – FLHD 900
The BMV FLHD 900 is designed for pruning citrus, olive groves, orchards and hazel trees, providing options for both green and dry pruning.
For dry pruning, it is equipped with 500 mm WIDIA-toothed saw discs, suitable for branches up to approximately 15 cm in diameter.
For green pruning, knives can be fitted to cut branches of approximately 2–3 cm in diameter, allowing faster forward working speeds.
Professional Pruning Equipment for Modern Orchards
Effective pruning plays an important role in orchard management. SAM Agri supplies BMV pruning and trimming machines designed to handle both summer and winter pruning, with configurations for cutting green and dry wood.
The machines can also be used for trimming side windbreaks, with the BMV FL 300N capable of reaching up to 4.30 m in horizontal cutting applications.
These machines are designed to provide flexibility across different orchard layouts and can be mounted and removed from tractors efficiently.
Green & Dry Pruning
Switch between suitable cutting equipment for green wood and dry branches.
Cutting Positions
The BMV FL 300N cutting group can operate vertically or horizontally.
Improved Air Circulation
Pruning can help improve air movement.
Different Rows
Hydraulic movements allow the machines to adapt to different plantation configurations.
Easier Machine Access
Well-managed trees can make movement of agricultural machinery through orchards easier.
Hydraulic Operation
The machine can operate from the tractor’s hydraulic system or an independent hydraulic unit.
Crop Management
Regular pruning helps farmers manage tree growth and maintain more uniform orchard structures.
Quick Tractor Mounting
The trimming machines can be mounted and dismounted from different tractor types efficiently.
Frequently Asked Questions
What are pruning and trimming machines used for?
Pruning and trimming machines are used to manage tree growth by cutting green and dry branches. They can be used for winter and summer pruning in orchards and plantations.
Which BMV pruning machines does SAM Agri supply?
The SAM Agri pruning page features the BMV FL 300N and BMV FLHD 900 trimming machines.
Can the BMV machines be used for both green and dry pruning?
Yes. Both models are designed for green and dry pruning, with different cutting equipment used depending on the application.
What types of trees can these machines prune?
The BMV range is designed for a variety of agricultural applications, including fruit trees, citrus, olive groves, orchards and hazel trees.
How high can the BMV FL 300N cut?
The BMV FL 300N can reach a horizontal cutting height of up to 4.30 m using its double sliding system on the central column.
Can the pruning machines be fitted to different tractors?
Yes. The original SAM Agri information states that the trimming machines can be mounted and dismounted from different types of tractors, while hydraulic requirements depend on the specific machine and tractor configuration.
